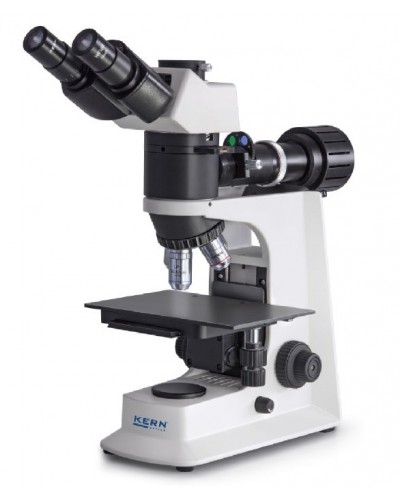

Metalurginis mikroskopas KERN OKM-1

• The KERN OKM-1 is an excellent metallurgical reflected light microscope, e.g. for surface quality testing of raw materials and finished products in industry.

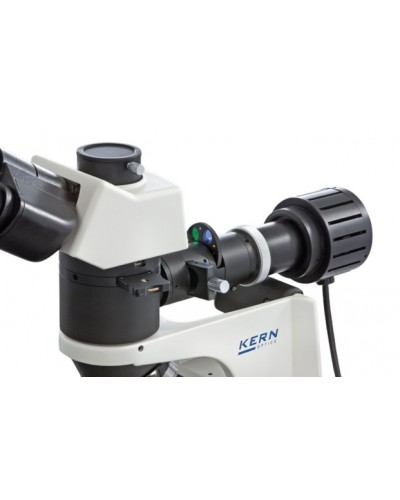

• The strong, continuously dimmable 30W halogen incident illumination unit (Philips) ensures excellent, high-contrast images.
• The illumination unit with an integrated 5-slot filter wheel for blue, green, yellow, grey and blank means that you can quickly change the colour filter for different contrast views.

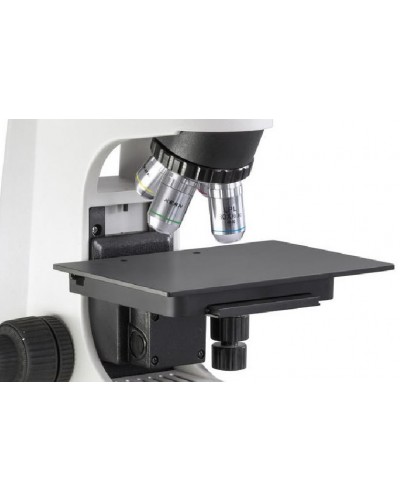

• A large mechanical stage for incident illumination applications is configured as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing of your sample.
• A simple polarising unit (analyser and polariser) is included with delivery.
• A large selection of different eyepieces and objectives is also available (optional, not included).
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery.
• A C-mount adapter is required to connect a camera to the trinocular version (optional, not included).

Scope of application

Metallurgy, material testing, quality assurance.

Applications/Samples

Opaque and thick samples, workpieces (surfaces, fold lines, coatings).

Technical data

• Infinity optical system.
• 4-fold lens revolving unit.
• Siedentopf 30° inclined, 360° rotatable.
• Dioptre compensation (adjustment): One-sided.
• Overall dimensions (W×D×H): 440 × 200 × 460 mm.
• Net weight approx.: 7.488 kg.
