Inversiniai metalurginiai mikroskopai KERN OLM-1

• The KERN OLM-1 range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry.
• Depending on the application, you can choose from models with a powerful, continuously dimmable 5W LED or a 50W halogen incident light illumination, which ensure optimum illumination of the materials to be tested.
• The compact design of the OLM 170 allows the user easier and more flexible handling, so that this model can also be considered for mobile use.
• As standard, the OLM-1 range is fitted with a trinocular eyepiece tube.
• A simple polarising unit (analyser and polariser) is included with delivery.
• Mechanical stage is included with delivery as standard.
• The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing.
• Further options such as, for example, a large selection of objectives can be integrated as accessories (optional, not included).
• A dust cover as well as user instructions are included with the delivery.

Scope of application

• Metallurgy, material testing, quality assurance.

Applications/Samples

• Opaque and thick samples, workpieces (surfaces, fold lines, coatings).

Technical data

• Infinity optical system.
• 5-fold lens revolving unit.

OLM 170

• Butterfly 45° inclined.
• Dioptre compensation (adjustment): One-sided.
• Overall dimensions (W×D×H): 470 mm × 240 mm × 330 mm.
• Net weight approx.: 6.506 kg.

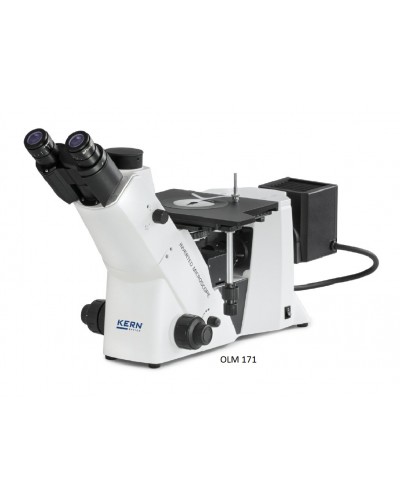

OLM 171

• Siedentopf 30° inclined.
• Dioptre compensation (adjustment): Both-sided.
• Overall dimensions (W×D×H): 747 × 271 × 379 mm.

• Net weight approx.: 12.968 kg.
