Stereomikroskopas Zoom KERN OZL-46

• The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price.
• The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample.
• The highlight of the KERN OZL 465 / OZL 466 is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included.
• As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class - ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
• The zoom objective offers you continuous magnification from 7 x - 45 x.
• The KERN OZL-46 series is available as a binocular or trinocular version.

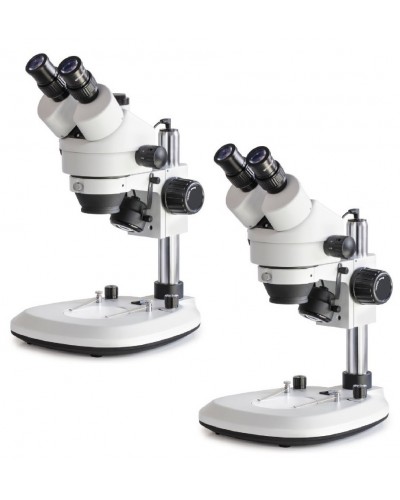

• The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand (OZL 463 / OZL 464 / OZL 465 / OZL 466).

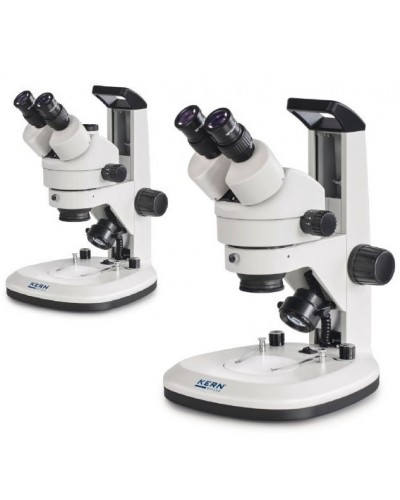

• With its integrated handle as well as its stable arm curved stand, the KERN OZL 467 / OZL 468 has been specially developed for schools and workshops.
• A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories (optional, not included).
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery.
• A C-mount adapter is required to connect a camera to the trinocular version (optional, not included).

Scope of application

• In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control.

Applications/Samples

• Samples with focus on three-dimensional, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components.

Technical data

• Optical system: Greenough optics.
• Brightness adjustable (separate).
• Tube 45° inclined.
• Magnification ratio: 6.4:1.
• Eye distance: 55.0 - 75.0 mm.
• Dioptre compensation (adjustment): Both-sided.
• Overall dimensions (W×D×H): 300 × 240 × 420 mm.
• Net weight approx.: 4.5 kg.
