Planšetinė kamera mikroskopui, C tipas, USB 2.0 KERN ODC-2

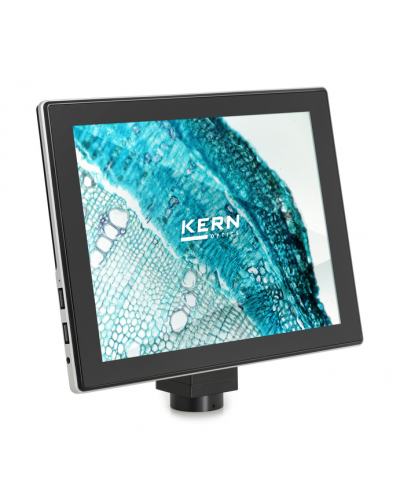

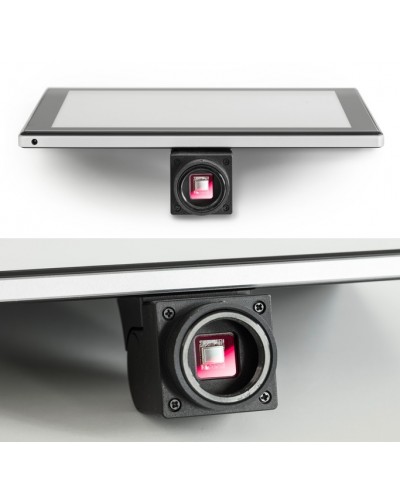

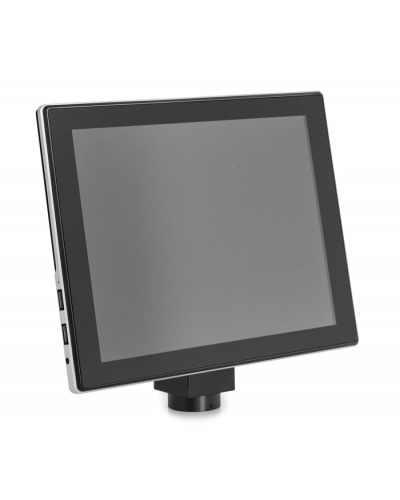

• A 2-in-1 solution in digital microscopy as a universal system for trinocular microscopes with C-mount adapter. The KERN ODC 241 microscope-tablet-camera consists of a large Android tablet in combination with a 5 MP camera.
• The tablet-camera has been specially developed for simple and direct observation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory.
• As well as a live transfer of the image to the Android tablet, the integrated 5 MP camera also means that images and videos can be created for the documentation.

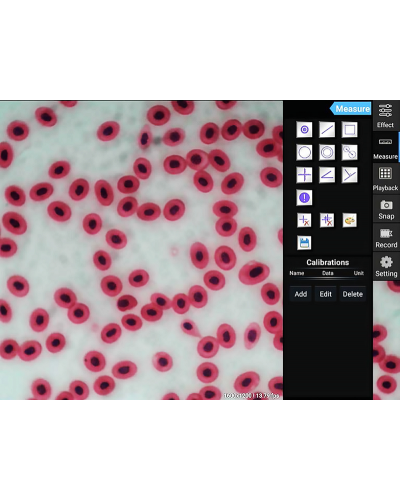

• Simple measuring functions, such as, for example, functions for measuring distance, surfaces and angles as well as a manual counting function are also available.
• Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures.
• A range of additional functions are provided through the integrated interfaces, such as, for example:
• * Data storage on a USB stick or SD card.
• * Connection to a USB mouse.
• * Transfer of the live image to an external screen using HDMI.
• * Transfer of stored data to external receivers using WLAN.
• The delivery includes the tablet camera with pre-installed software as well as the main adapter.
• Note! Cannot be used in combination with the following microscopes: OZM-5 series, OZC 583, OLM 170.

Technical data

• 9.7" LCD Touch screen.
• Screen resolution: 2048 x 1536 pixels.
• Dimensions (W×D×H): 238 x 51 x 206 mm.
